Large-area temperature monitoring in real time with 7 temperature sensors
Flexora One: Flexible. Wireless. Non-invasive.
Large-area temperature monitoring with 7 sensors thought new
Real-time temperature monitoring of large surfaces or complex geometries often fails due to high installation costs, complex wiring, and challenging integration into control systems.
Flexora One offers a simple solution for large-area temperature monitoring: our ultra-thin, flexible, and wireless sensor solution delivers fast, easy, and non-invasive real-time insights into the temperature distribution of your equipment and infrastructure.
Why Flexora One?
Detect anomalies and system failures early
Enable data-driven decisions at scale
Non-invasive and wireless integration
Real-time data for automation and AI optimization
Predictive Maintenance – Minimize downtime
Cut energy usage and CO₂ emissions by up to 70%
Printed sensors and cables meet wireless data transfer

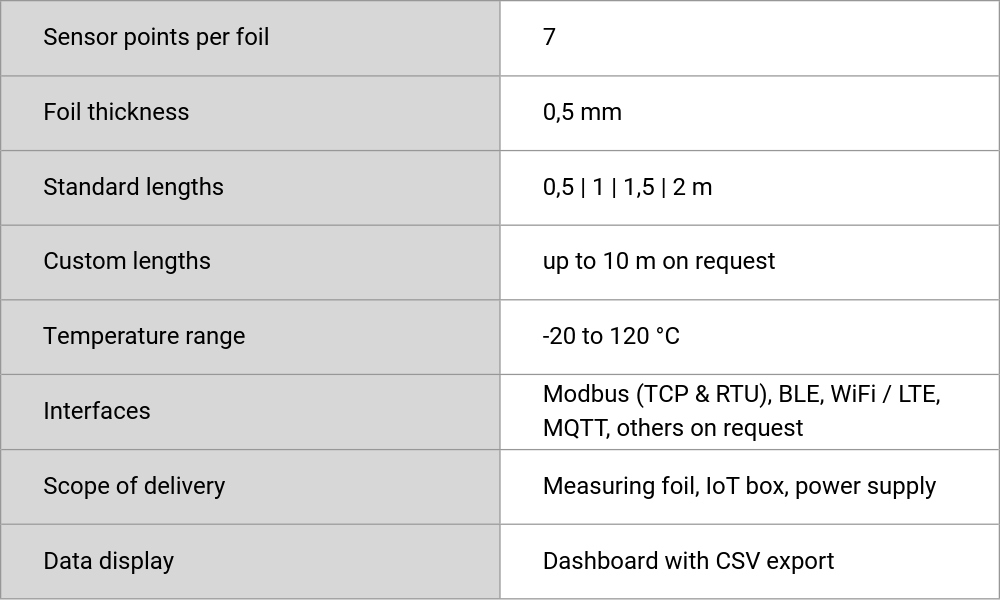

Smart temperature monitoring with 7 sensors: Technical details of Flexora One
-20°C to 120°C
Operational temperature
Up to 20 m
Bluetooth Low Energy
+/- 0.5°C
Temperature accuracy
0.1 s
Latency
Seamless Integration
With less than 500 μm thickness, Flexora sensor foils are flexible and allow for seamless integration into already existing systems.
Flexora One is available in three standard lengths – 150 cm, 100 cm, and 50 cm – each with 7 temperature sensors. Additionally, there is the possibility to customize the length according to your needs.
The foils can be placed between areas you wish to monitor or applied directly to surfaces. For easy installation, use the integrated adhesive film simply by pulling off the protective layer. Alternatively, you can use magnets to mount the foils on magnetic surfaces.
Insights that help you
Obtain different visualizations or raw data
The Flexora dashboard can be individually adapted to your requirements. This includes variable sampling rates as well as flexible time periods for data analysis.
It enables you to visualize historical data in different formats or export the raw data directly to your computer.
Set up in seconds
The read-out unit of Flexora One ensures seamless and reliable data transmission. It enables precise reading of the captured temperature data and its direct forwarding to any end device of your choice. Thanks to versatile connectivity options, it offers maximum flexibility: wireless via BLE, LTE, or Wi-Fi, as well as wired via CAN, OneWire, Profibus, or Modbus. This allows Flexora One to be easily integrated into existing control and automation environments..
Do you require a different data transmission protocol? Our software developers will be happy to support you in implementing it.
Large-area temperature monitoring for heat storage tanks
More data for maximum transparency and efficiency
Large-area temperature monitoring provides the crucial data transparency needed to operate heat storage tanks efficiently, smart, and on demand.
Our temperature sensors provide a complete temperature profile across the entire heat storage system, thereby revealing the actual charge status and available energy. This allows charging and discharging processes to be optimally controlled, energy to be saved and overall efficiency to be significantly increased.
