MEET FLEXORA ONE
OUR TEST & DISCOVERY KIT
Temperature monitoring made easy
Flexora One is our plug-and-play solution for large surface temperature monitoring. Thanks to its flexibility and ultra-thin design, it allows for non-invasive integration.
Captured data is transmitted wirelessly to your device of choice where you can instantly visualize heat profiles.
Historical data allows to gain deeper insights into your systems’ performance allowing for improvement of operational efficiency.
Flexora One Discovery Kit
-20°C to 120°C
Operational temperature
Up to 20 m
Bluetooth Low Energy
+/- 0.5°C
Temperature accuracy
0.1 s
Latency
What Flexora One can do for you
Use recorded data for optimization
Get data sent to the device of your choice
Discover Innovation – free trial period of up to 6 weeks!
Discover the power of our test and discovery kit Flexora One and get hands-on with groundbreaking technology – no commitment required. Explore its potential, see how it fits your needs, and work with us to customize it into a solution that can truly transform your business.

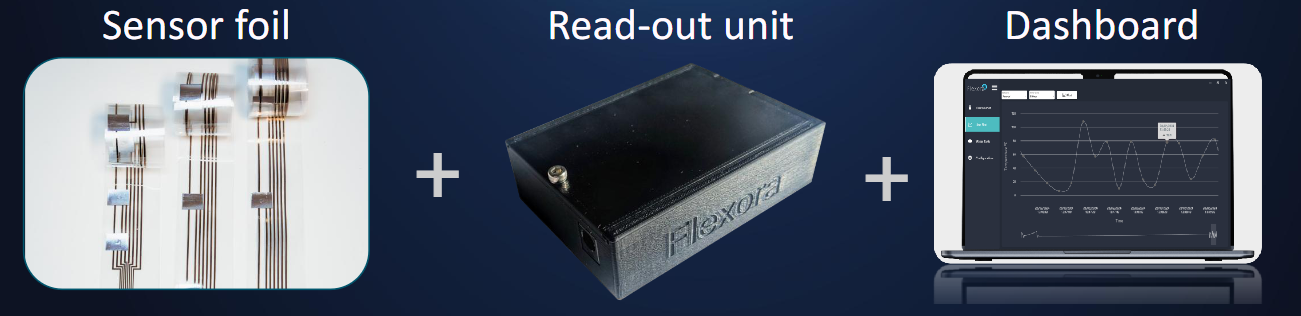

As part of the trial phase, we provide you with a complete system, including hardware, software, and supporting services, including:
✓ Sensor foil, available in predefined lengths up to 2 meters, equipped with 7 sensors
✓ IoT Box with Bluetooth, adapter & power supply (DC 12V)
✓ Flexora One dashboard installation file and digital user manual
✓ Personal delivery, presentation and assist during integration
✓ Ongoing support during test period
✓ Evaluation after test period (incl. report)
Seamless integration
With less than 500 μm thickness, Flexora sensor foils are flexible and allow for seamless integration into already existing systems.
Flexora One is available in three standard lengths – 150 cm, 100 cm, and 50 cm – each with 7 temperature sensors. Additionally, there is the possibility to customize the length according to your needs.

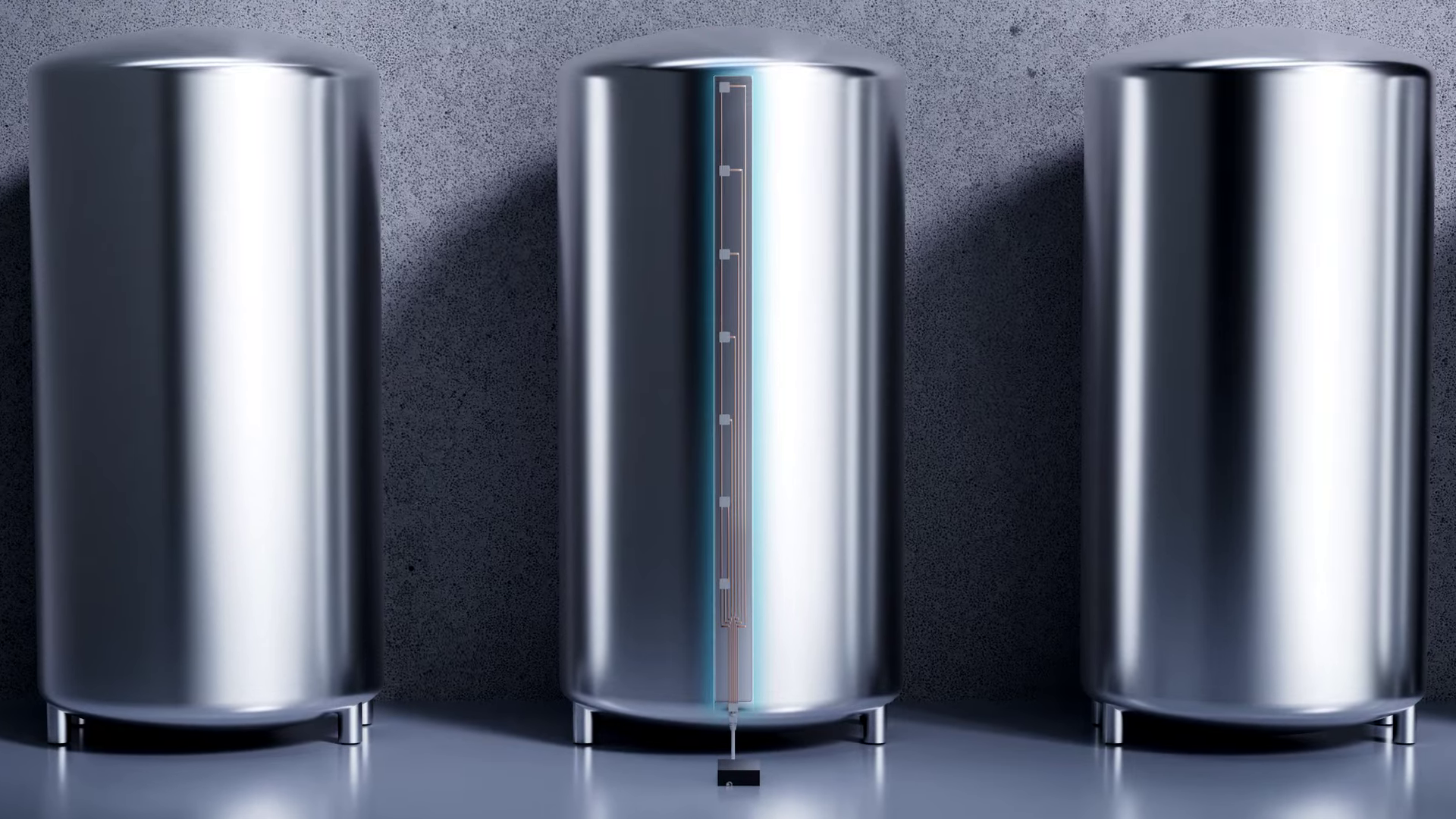

The foils can be placed between areas you wish to monitor or applied directly to surfaces. For easy installation, use the integrated adhesive film simply by pulling off the protective layer. Alternatively, you can use magnets to mount the foils on magnetic surfaces.
Do you have other dimensions, sensor arrangements or even different sensor types in mind?
Click here to learn about the possibility of customizing your ideal sensor.
Insights to help you
Obtain different visualizations or raw data
The Flexora Dashboard allows for customization to your very needs. This includes different sample rates and desired time frames for data evaluation.
It allows you to visualize historic data in various forms or to simply extract the raw data to your computer.
Set up in seconds
Simply connect the read-out box to a power supply and send the data to the device of your choice via Bluetooth Low Energy.
Have another protocol for data transfer in mind? Our software engineers are happy to help.
